BURCO Welding and Cutting Products, Inc.

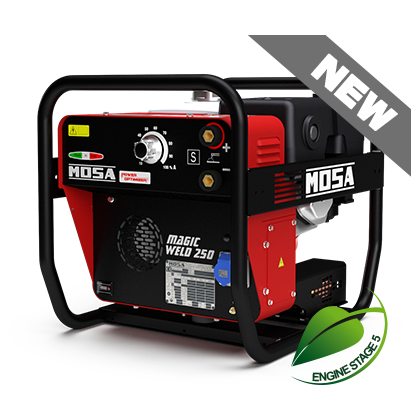

MAGIC WELD 250

MAGIC WELD 250

TECHNICAL DATE SHEET

Petrol Engine-driven welder - Honda GX 390 Engine

WELDING

  • Welding current: 250A @ 25V
  • Service: 220A @ 28.8V / 35%  |  200A @ 28V / 60%  |  175A @ 27V / 100%
  • Open circuit voltage (no-load voltage): 70 Vdc (Vdc peak)

POWER RATINGS

  • Single-phase power: 3.3 kVA / 230 V / 14.3 A
  • Single-phase power: 2.1 kVA / 110 V / 19A

GENERAL SPECIFICATION

  • Tank capacity: 6.1 l
  • Running time (welder 60%): 2.8 h
  • Acoustic power LwA (pressure LpA): 99 dB(A) (74 dB(A) @ 7 m)
  • Weight: 71 Kg
  • Dimensions max. on base Lxlxh:  630x490x540 mm

Model

Fuel

Starter

Output

Cylinders/ Displacement

Speed

Cooled

Honda GX 390

Petrol

Recoil

8.2 kW
(11.1 HP)

1/ 389 cm3

3000 rpm

Air

KOHLER CH 440 COMMAND PRO

Petrol

Manual


1/ 429 cm3 (0.429lt.)

3000 rpm

Air
