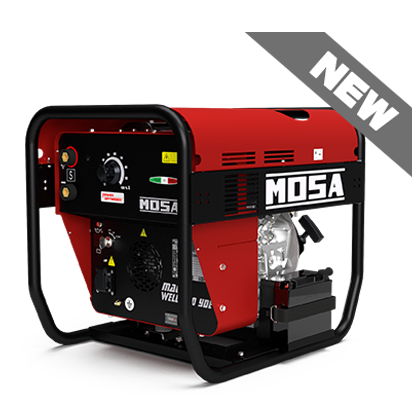

MAGIC WELD 230 YDE

TECHNICAL DATA SHEET

Diesel Engine Driven Welder - YANMAR L100W6 Engine

WELDING

• Welding current: 20 A / 20.8 V - 230 A / 22 V  |  20 A / 20.8 V ÷ 190 A / 27.6 V (IEC Rating)
• Service: 190 A / 27.6 V @ 60% (IEC Rating)  |  175 A / 27 V @ 100% (IEC Rating)

• Open circuit voltage (no-load voltage): 70 Vdc (Vdc peak)

POWER RATINGS

• Single-phase power: 2.1 kVA / 110 V / 19A


GENERAL SPECIFICATION

• Tank capacity: 5.4 l
• Running time (welder 60%): 3.6 h
• Acoustic power LwA (pressure LpA): 108 dB(A) (83 dB(A) @ 7 m)
• Weight: 112 Kg

• Dimensions max. on base Lxlxh:  630x550x586  mm
