BURCO Welding and Cutting Products, Inc.

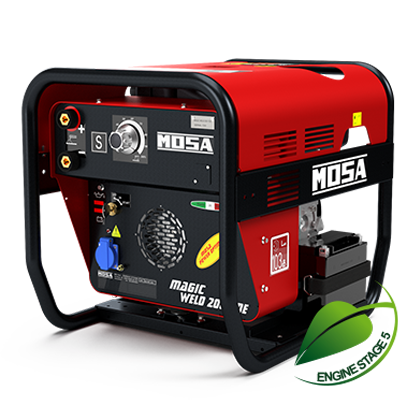

MAGIC WELD 200 YDE

MAGIC WELD 200 YDE

TECHNICAL DATE SHEET

Diesel Engine Driven Welder - Yanmar L70V Engine

WELDING

  • Welding current: 20 ÷ 200A
  • Service: 170 A - 60%
  • Open circuit voltage (no-load voltage): 72V

POWER RATINGS

  • Single-phase power: 3.3 kVA / 230 V / 14.3 A
  • Single-phase power: 2.1 kVA / 110 V / 18.3A

GENERAL SPECIFICATIONS

  • Tank capacity: 3.3 l
  • Running time (welder 60%): 3.3 h
  • Acoustic power LwA (pressure LpA): 103 dB(A) (78 dB(A) @ 7 m)
  • Weight: 91 Kg
  • Dimensions max. on base Lxlxh:  630x490x540  mm

Model

Fuel

Starter

Output

Cylinders/ Displacement

Speed

Cooled

Yanmar L70V

Diesel

Electric

4.8 kW
(6.6 HP)

1/ 320 cm3

3600 rpm

Air
