BURCO Welding and Cutting Products, Inc.

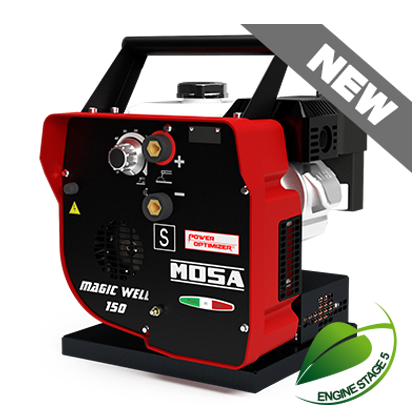

MAGIC WELD 150

MAGIC WELD 150

TECHNICAL DATA SHEET

Petrol Engine driven welder - Honda GX200 / MOSA M225 Engine

WELDING

  • Welding current: 20 A / 20.8 V - 150 A / 20 V
  • Service: 130 A / 25.2 V @ 60% (IEC Rating)  |  80 A / 23.2 V @ 100% (IEC Rating)
  • Open circuit voltage (no-load voltage): 67V

GENERAL SPECIFICATION

  • Tank capacity: 3.1 l
  • Running time (welder 60%): 3 h
  • Acoustic power LwA (pressure LpA): 99 dB(A) (74 dB(A) @ 7 m)
  • Weight: 34 Kg
  • Dimensions max. on base Lxlxh:  435x375x490 mm

Model

Fuel

Starter

Output

Cylinders/ Displacement

Speed

Cooled

HONDA GX 200

Petrol

Recoil

4.3 kW
(5.8 HP)

1/ 196 cm3

4000 rpm

Air

MOSA M 225

Petrol

Manual

4.5 kWm

1/223 cm3 (0.223 lt.)

4000 rpm

Air
